Not every pond holds water the way it should. Sandy soils, rocky terrain, and porous ground can cause frustrating water loss, leaving you with a pond that never fills or constantly needs refilling. Whether you’re building a new pond or repairing an existing one that won’t hold water, proper pond lining is the solution.
At Bulletproof Pond and Lake, we install both plastic HDPE liners and clay linings that create a reliable barrier against seepage and water loss. Our pond lining services in the Kansas City Metro Area ensure your pond maintains consistent water levels, supports healthy aquatic life, and delivers the crystal-clear water you envision—whether you’re creating a swimming pond, livestock water source, or natural habitat.
Without proper waterproofing, ponds built in sandy, rocky, or porous soils struggle to hold water. The result is constant water loss, inconsistent water levels, and the frustration of watching your investment literally drain away.
We offer two proven pond lining methods, each suited to different soil conditions, budgets, and project goals.
Plastic pond liners use large, custom-fabricated sheets of 40 Mil-HDPE (High-Density Polyethylene) to create a completely waterproof barrier within your pond or lake. Unlike natural materials that reduce seepage, synthetic liners are 100% waterproof—preventing every drop of water from escaping into the ground.
HDPE liners are 100% waterproof—not just water-resistant. They’re ideal for water conservation and crystal-clear water quality, excellent for swimming and recreation, and perfect for locations where natural clay isn’t available. They’re also durable and puncture-resistant with proper installation.
Installation is labor-intensive and requires specialized equipment due to the liner’s weight and welding requirements for seaming large panels together.
Seasonal timing significantly affects installation costs. During summer months, HDPE liners can reach temperatures of 135°F or higher when exposed to direct sunlight, making them difficult and dangerous to handle. This extreme heat reduces production by approximately 50%, which dramatically increases labor costs and project timelines. For this reason, summer installations are typically more expensive than those completed during cooler months (spring, fall, or winter), when the material is more manageable, and crews can work more efficiently.
Clay pond linings use natural, compacted clay soils to create a water-resistant layer that reduces seepage and helps maintain stable water levels. Unlike synthetic liners, clay linings rely on properly sourced, placed, and compacted clay to form a dense, cohesive seal throughout the pond basin.
Clay pond linings are well-suited for ranch and livestock ponds, wildlife or habitat ponds, natural recreational ponds, rain-fed and watershed ponds, properties with abundant on-site clay, and projects prioritizing long-term natural durability.
Bulletproof also offers a specialized liner installation process designed specifically for pond and lake repair projects involving seepage or leaks through and/or under the dam.
This exclusive method, developed and refined by Bulletproof Pond and Lake, allows our team to vertically install waterproof liners within the dam itself, effectively sealing the core (also called the keyway) and preventing water from migrating through the structure.
What sets this process apart is that it doesn’t require draining the pond and uses synthetic materials instead of sourcing natural ones. Using custom-engineered equipment, we precisely install an HDPE liner down the center of the dam, forming a continuous vertical barrier that eliminates leaks while maintaining the integrity of the existing structure and water level.
This innovation makes Bulletproof the only known company in the country capable of performing true in-place, in-dam waterproofing through liner installation—a process that saves time, minimizes disruption, and delivers long-term reliability.
Installing professional pond lining delivers lasting value:
Elevating The Standard For Excavation Companies
Showcased by over 60 reviews, our clients rave about the exceptional quality of our projects, from driveways to luxurious water features. Bulletproof Pond and Lake is celebrated for delivering outstanding outcomes and exceeding expectations with every task undertaken.
We educate pond owners through clear documentation and instructional social media videos, providing practical tips for pond care and enjoyment. Our resources empower owners to maintain their ponds effectively while maximizing their enjoyment of these aquatic features.
Bulletproof embraces modern techniques by integrating LiDAR surveys, GPS technology, and AutoCAD planning into our processes. These advancements enhance precision and efficiency in project planning and execution, ensuring superior outcomes for our clients.
We are expanding beyond Kansas and now serve clients in Missouri, Oklahoma, and Texas. Our growth allows us to reach more customers and offer our expertise in pond and lake construction across multiple states.
We conduct a comprehensive assessment of your property to determine the best lining solution for your specific situation.
For new pond construction: We shape and prepare the pond basin to ensure proper placement and long-term performance of your chosen lining system. This includes removing unsuitable materials, such as topsoil, roots, and debris, establishing the correct slopes and contours, and creating a smooth, stable base for liner installation or clay compaction.
For existing ponds: We drain the pond using high-capacity pumps (especially if springs are present) or controlled drainage methods. Once drained, we can either remove the accumulated sediment and muck immediately or allow it to dry naturally over time before removal. The basin is then prepared with proper grading to create an ideal foundation for the new liner system.

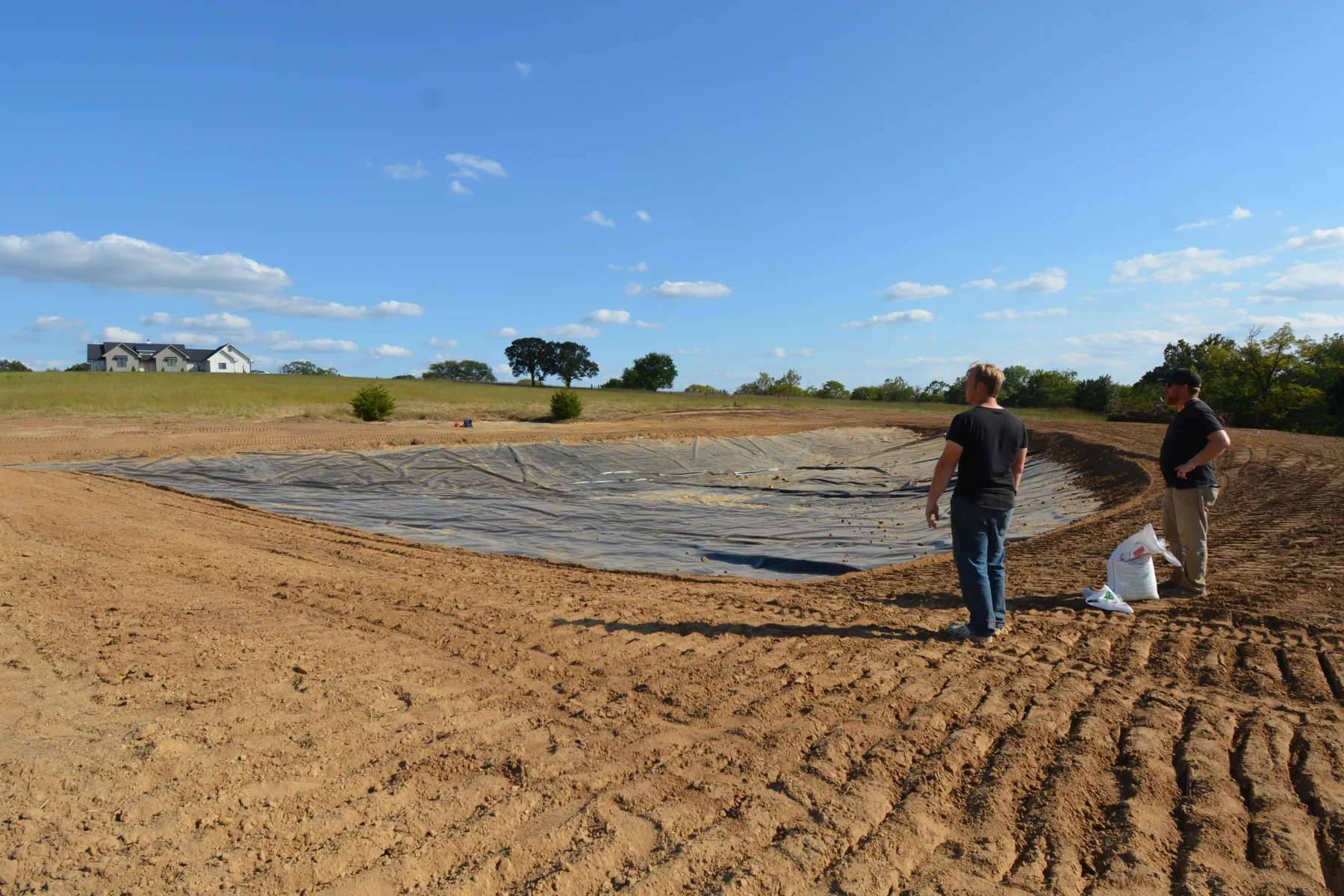

For HDPE Plastic Liners: We install a protective fabric reinforcement layer across the entire pond bottom, then custom-fabricate and install large sheets of 40 Mil-HDPE liner over this base. Seams are heat-welded to create a continuous waterproof barrier. The liner is carefully positioned and secured to prevent it from shifting or sustaining damage.
For Clay Linings: Clay is hauled to the pond area and spread in uniform layers (called "lifts"), typically 6-8 inches thick. Each lift is moisture-conditioned and mechanically compacted with sheepsfoot or vibratory rollers to create maximum density. Multiple lifts are added until the desired liner thickness, usually 12–24 inches, is achieved.
We complete the installation by restoring and properly compacting the dam, regrading banks and basin contours for optimal water flow and aesthetics, seeding exposed areas to establish vegetation and prevent erosion, adding erosion control measures, and installing shoreline rock or stone (for plastic liners) to protect against UV exposure and create a natural aesthetic. The result is a properly sealed pond that maintains consistent water levels and performs beautifully for decades.
Customized Solutions For Lasting Water Retention
*Prices vary depending on pond size, soil conditions, accessibility, the chosen lining method, and any additional upgrades such as shoreline rock. Following the on-site consultation, you will receive a customized quote for your specific project.
Discover How We've Transformed Visions Into Reality
The best option depends on your soil conditions, water source, budget, and project goals. If you have sandy or rocky soil, need 100% waterproof protection, or want crystal-clear water for swimming, HDPE plastic liners are ideal. If you have quality clay available on-site, prefer natural materials, and want a traditional earthen pond aesthetic, clay lining is an excellent choice. During our on-site consultation, we’ll assess your specific situation and recommend the solution that best fits your needs.
HDPE plastic liners last 15-20 years when exposed to direct sunlight. However, when protected from UV exposure with shoreline rock, sand, gravel, or pond dye, they can last 50–100 years. Clay linings, when properly installed and compacted, can last 50-100+ years and offer exceptional longevity with minimal maintenance.
Yes, we install liners in both new and existing ponds. For existing ponds, we assess the current condition, drain the pond if necessary, prepare the basin properly, and install your chosen lining system. If your existing pond won’t hold water due to seepage, adding a liner can completely solve the problem.
We do not repair liners—we only replace them. However, clay linings can be repaired if erosion or animal activity causes damage, which is one advantage of natural clay over synthetic materials.
Occasional wildlife traffic, such as deer, raccoons, or birds, won’t damage a properly installed HDPE liner. However, cattle and livestock can cause significant damage through repeated hoof traffic, which is why we don’t recommend plastic liners for livestock ponds unless the animals are fenced away from the water’s edge. For added protection in areas with burrowing animals like muskrats, we can install reinforcement layers or protective barriers during installation.
No, we account for springs during the installation process. When springs are present, we install a proper drainage system beneath the liner that channels spring water up through designated relief points, preventing pressure buildup under the liner. This ensures the liner remains stable and properly seated without the “waterbed” effect. Pumps are often used during installation to manage spring flow while we work.
Lining an existing pond generally takes about twice as long as building a new pond from scratch, though the exact timeline varies significantly based on pond size, accessibility, weather conditions, and whether we’re working with plastic or clay. Smaller ponds may be completed in a few weeks, while larger projects can take several months. We’ll provide a detailed timeline estimate during your on-site consultation.
The most popular enhancement for plastic-lined ponds is adding shoreline rock or stone. This creates a natural, visually appealing transition between the land, liner, and water while protecting the liner from UV exposure—significantly extending its lifespan to 50-100 years.
No, clay lining is water-resistant but not 100% waterproof. It significantly reduces seepage and maintains stable water levels, but allows minimal water loss. For complete water retention, especially in ponds supplied by wells or limited water sources, HDPE plastic liners are the better choice.
Bulletproof has developed an exclusive process for vertically installing waterproof liners within the dam itself to seal leaks without draining the pond. Using custom-engineered equipment, we install an HDPE liner down the center of the dam, creating a continuous vertical barrier that eliminates leaks while maintaining the existing structure and water level. We’re the only known company in the country capable of performing true in-place, in-dam waterproofing through liner installation.
Yes, seasonal timing can impact installation costs for plastic liners. Summer installations are typically more expensive due to the challenges of heat-related handling, while cooler seasons are often more cost-effective. We’ll discuss timing during your consultation to help you plan accordingly.
No, we do not install or repair RPE liners. Based on our experience and industry observations, RPE liners have proven to be unreliable, with quick degradation compared to other materials like HDPE. We only install pond lining materials that we trust to deliver long-term performance and durability—which is why we exclusively work with 40 Mil-HDPE plastic liners and natural clay linings. These materials have proven track records of lasting 50-100+ years when properly installed and maintained.
